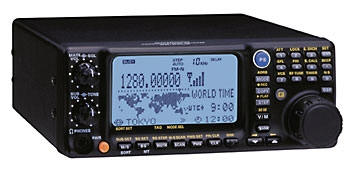

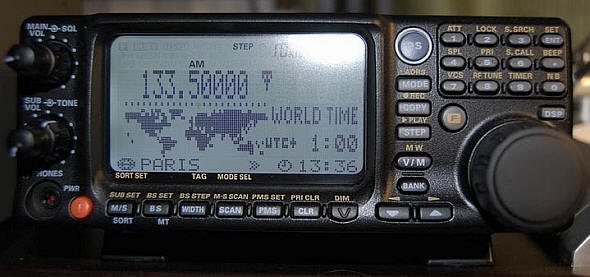

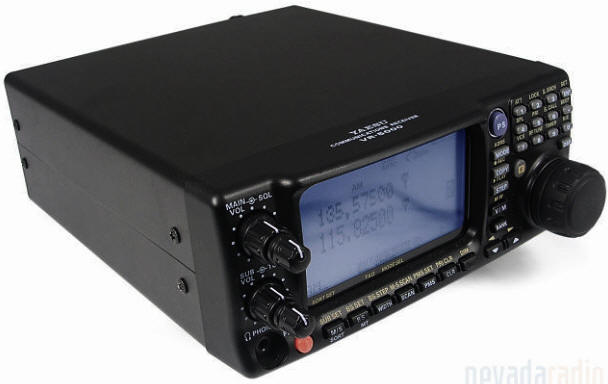

O YAESU VR-5000 é o
verdadeiro sonho de consumo de qualquer amante do rádio, tanto de
radioescutas, dxistas como de radioamadores... um receptor de
comunicações super completo de A a Z, que atende desde radioescutas SWL de
OM e Ondas Curtas até os que gostam de ouvir de tudo, mais tudo mesmo...
risos...
Com o VR-5000 pode-se ouvir
desde NDBs, Emissoras de Ondas Médias, Ondas Curtas, FM e TV, Telefones sem fio,
Radioamadores em todas as faixas e modos, Serviço Governamental, Segurança,
Radio Taxi, GCM Guarda Civil Metropolitana, Policia Rodoviária, Militar,
Civil, Bombeiros, Aviação, Concessionárias de Rodovia, Modos Digitais,
Repetidoras, Satélites, Serviço de Rádio Marítimo e muito mais..
.
VR-5000 Specifications
Frequency Range:
0.1 ~ 2599.99998 MHz
Receiving Mode:
CW/LSB/USB/AM/AM-N/WAM/FM-N/WFM
Antenna Impedance:
50 Ohm unbalanced, 450 Ohm unbalanced
Channel Step:
0
Main Band
LSB/USB/CW: 20 Hz/100 Hz/500 Hz/1 kHz/5 kHz
0
AM-N/AM/WAM: 1/5/9/10/20/25/50/100/500 kHz
0
FM-N: 5/6.25/10/12.5/20/25/50/100/500 kHz
0
WFM: 10/50/100/500 kHz
Sub Band
AM: 1/5/9/10/20/25/50/100/500 kHz
0
FM-N: 5/6.25/10/12.5/20/25/50/100/500 kHz
Memory Channel:
Regular Memories: 2000 Channels
0
PS "Preset" Memories: 5 Channel
Operating Temp.:
-10 °C ~ + 50 °C
Sensitivity:
0.2 ~ 0.49998 MHz
SSB/CW
4.8 uV (10 dB S/N)
0
0
AM
10.8 uV (10 dB S/N)
0
0.5 ~ 1.79998 MHz
SSB/CW
1.0 uV (10 dB S/N)
0
0
AM
4.0 uV (10 dB S/N)
0
1.8 ~ 3.99998 MHz
SSB/CW
0.6 uV (10 dB S/N)
AM
2.5 uV (10 dB S/N)
0
4.0 ~ 29.99998 MHz
SSB/CW
0.3 uV (10 dB S/N)
0
0
AM
1.1 uV (10 dB S/N)
0
28.0 ~ 29.99998 MHz
FM-N
0.35 uV (12 dB SINAD)
0
30.0 ~ 1999.99998 MHz
SSB/CW
0.3 uV (10 dB S/N)
0
0
AM
1.2 uV (10 dB S/N)
0
0
FM-N
0.45 uV (12 dB SINAD)
0
WFM
1.5 uV (12 dB SINAD)
0
2000.0 ~ 2599.99998 MHz
SSB/CW
0.5 uV (10 dB S/N)
0
0
AM
1.8 uV (10 dB S/N)
0
0
FM-N
0.8 uV (12 dB SINAD)
Conducted Spurious Emission:
Less than 54 dBm
Supply Voltage:
DC 13.5V ±15 %
Current Consumption:
0.7 A (@ audio output 1W)
Audio Output:
At least 1 W @ 8 Ohm
Audio Output Impedance:
8 Ohm
Case Size:
7.1x2.75x8 inches 4.2 Lbs (180x70x203 mm) without knobs
Weight:
Approx. 4.2 Lbs (1.9 kg)
Specifications are subject to change without
notice or obligation.0
